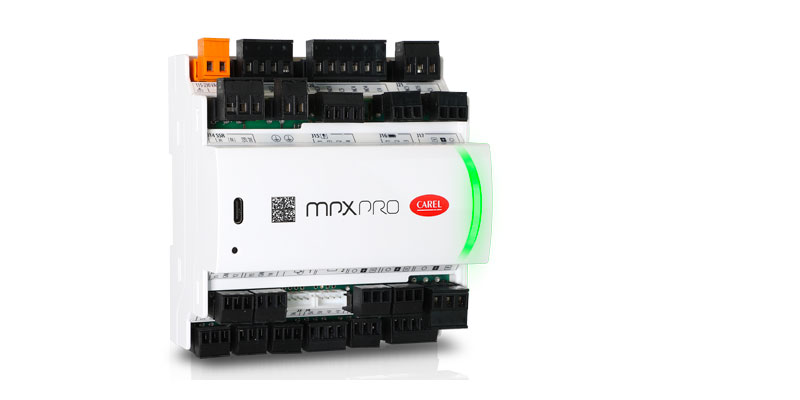

New MPXPRO

SPM*
New MPXPRO
  • Общие характеристики

    The new MPXPRO extends and improves the range of MPX family controllers, representing the most advanced solution for the control of commercial refrigeration units, from stand-alone cabinets with variable-speed compressors, to remote cabinets and cold rooms with electronic expansion valves. Designed on a flexible and scalable platform, the new MPXPRO responds to the increasingly complex needs of the food retail business, combining high performance and energy efficiency.



    By integrating current sensors that directly monitor electrical loads, any anomalies can be identified quickly, allowing a prompt and reliable service response. These can also provide providing detailed monitoring of overall energy consumption for benchmarking activities and energy performance optimisation.



    In addition to complete control of the unit, the new MPXPRO stands out for the integration of cutting-edge technologies such as NFC and Bluetooth™ (BLE) wireless connectivity, simplifying interaction with mobile devices and facilitating configuration and commissioning via dedicated apps.



    The uniform aesthetics across the entire range, the ease of use and the scalability of the features, combined with the efficiency ensured by the ability to manage modulating devices (fans, heaters, compressors), make the new MPXPRO a strategic element in modern, high-performance, and fully-integrated refrigeration systems.

  • Преимущества

    The new MPXPRO represents the best performing solution for the control of high-end food retail units.

    Compact dimensions

    In just six DIN modules, it is the most compact controller in its category, ideal for optimising space and performance without compromise.

    Energy monitoring and intelligent prevention

    Thanks to three built-in current sensors, the controller monitors the power consumption of loads in real time, promptly detecting any anomalies and ensuring reliable and proactive control.

    One solution for multiple needs

    One single part number for the direct control of electronic expansion valves, both bipolar stepper (with built-in Ultracap) and PWM, adapting to all application requirements.

    Cutting-edge connectivity

    Up to two independent RS485 serial ports, NFC and Bluetooth™ connectivity included in the user interface for easy interaction with apps, and USB-C port for quick setup and upgrades.

    Advanced versatility

    A versatile I/O to adapt to any need for the management of refrigeration units:

    • up to eight analogue inputs, with the possibility of configuring up to three of them as active probes;
    • three dedicated digital inputs (up to a maximum of five depending on the number of analogue inputs used);
    • version with five or six digital outputs;
    • up to four modulating 0-10 V / PWM outputs for controlling anti-sweat heaters/evaporator fans or variable-speed compressors (VCC).


Документация

Технический

  • 2D/3D модели
    Код Описание Язык Дата * Выпуск
    Код MSC - MPXPRO - 2D

    Описание 2D-3D drawings

    Язык ALL

    Дата 15/04/2025

    Выпуск R.0

  • Руководства по эксплуатации
    Код Описание Язык Дата * Выпуск
    Код +0500196ML

    Описание Technical leaflet - MPXPRO - Mid Size Controller

    Язык ENG

    Дата 07/05/2025

    Выпуск 1.1

    Код +0500196ML_ITA

    Описание Foglio tecnico - MPXPRO - Mid Size Controller

    Язык ITA

    Дата 07/05/2025

    Выпуск 1.1

    Код +0500197ML

    Описание MPXPRO - Electronic controller for centralized commercial refrigeration applications

    Язык ENG

    Дата 15/04/2025

    Выпуск 1.0

    Код +0500197ML_ITA

    Описание MPXPRO Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate

    Язык ITA

    Дата 15/04/2025

    Выпуск 1.0
