Heosone
Общие характеристики
Heosone is a solution for the control and management of chest freezers and wall-standing plug-in showcase coolers for supermarkets and professional refrigerators.

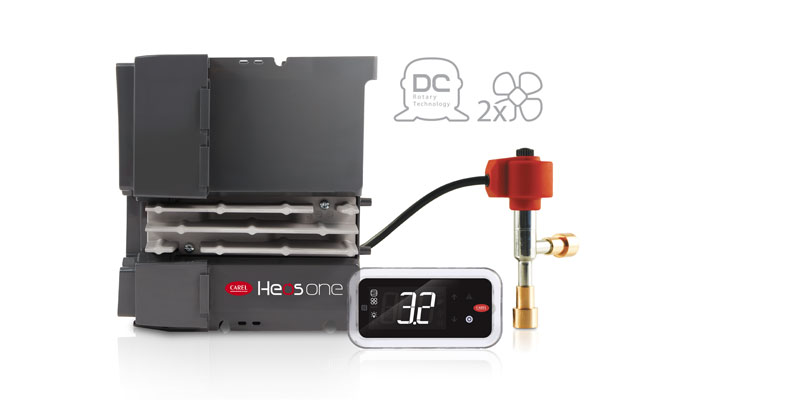

The kit of components can be applied to both low temperature and medium temperature applications operating on propane.The complete package includes:
- BLDC compressor. DC technology allows greater efficiency through permanent magnet brushless motors, the widest range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions.
- Control unit with integrated DC driver. All of the advantages of CAREL drivers (electrical efficiency, reliability of both the driver and the entire solution, electromagnetic compatibility) are combined with the Heosone controller to form an integrated unit for:
- cabinet temperature and superheat control
- compressor management (COP calculation, oil recovery procedures)
- condensing stage control
- lights, defrosts, fans and alarms - Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor, the evaporation temperature can be controlled continuously to ensure efficiency in all operating conditions. The use of electronic valves also allows preventive and alarm monitoring actions, for greater reliability of the entire solution.
- DC motors for EC fans. High efficiency and low noise, available for the condenser and/or evaporator.
- HMI with BLE/NFC connectivity.
The sensor and probe kit and the WiFi gateway option (serial - WiFi converter) complete the offering.
The cooling capacity varies from 0.8 kW to 1.6 kW, depending on the application, with a propane charge of up to 150 g.
Heosone can be perfectly integrated into supervisory and remote monitoring systems.-
Преимущества
Risk-free green solution
All the benefits of propane without the safety risks (charge limited to 150 g)
One stop shop
CAREL as the sole supplier and partner for the entire control package.
Usability
Advanced connectivity thanks to BLE, NFC and dedicated app
Continuous system modulation
Variable speed compressors (BLDC), electronic expansion valves with stepper motor, DC motors for fans.
Energy efficiency
The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.
Maximum food preservation quality
Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the showcases.
Документация
Технический
-
2D/3D модели
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код 2d - 3d Heosone IP00 Описание 2D-3D drawings IP00 Язык ALL Дата 09/05/2022 Выпуск R0 Код 2d - 3d Heosone IP44 Описание 2D-3D drawings IP44 Язык ALL Дата 09/05/2022 Выпуск R0 -
Инструкции по применению
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0300099IT Описание Heosone Soluzione ad alta efficienza per unità plug-in a propano Язык ITA Дата 16/11/2021 Выпуск 1.2 Код +0300099EN Описание Heosone High-efficiency solution for propane plug-in units Язык ENG Дата 16/11/2021 Выпуск 1.2 -
Руководства по эксплуатации
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +050002740 Описание Heosone Soluzione ad alta efficienza per unità plug-in a propano High-efficiency solution for propane plug-in units Язык ENG ITA Дата 16/11/2021 Выпуск 1.2 Код +050002742 Описание Heosone Энергоэффективное решение для пропановых установок High-efficiency solution for propane plug-in units Язык ENG RUS Дата 16/11/2021 Выпуск 1.2
Коммерческий
-
Брошюра
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000217IT Описание Heosone - Soluzione ad alta efficienza per unità plug-in a propano Язык ITA Дата 19/03/2021 Выпуск 1.0 Код +3000217EN Описание Heosone - High-efficiency solution for propane plug-in units Язык ENG Дата 19/03/2021 Выпуск 1.0
Images
-
High resolution images
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код PH20LUP305-Heos-One-IP20-44 Описание Heosone-CAREL-Food Retail-Plug-in and semi plug-in Язык ALL Дата 03/09/2021 Выпуск R.0 Код PH20LUP303-Heos-One-IP00 Описание Heosone-CAREL-Food Retail-Plug-in and semi plug-in Язык ALL Дата 03/09/2021 Выпуск R.0
