pGDN

Общие характеристики

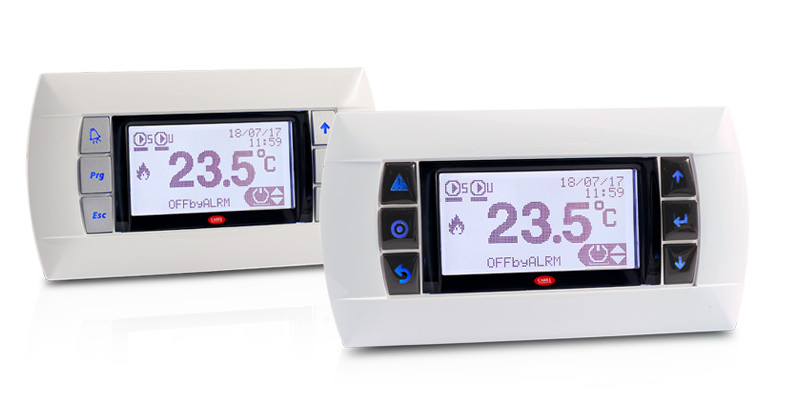

The pGDN semi-graphic terminals are part of the range of pCO sistema user interfaces designed to offer higher versatility and extensive customisation possibilities. When designing these terminals, CAREL focused special attention on simplicity of programming and the quality of performance, while maintaining a high aesthetic standard. The terminals have a 132x64 pixel backlit WHITE display and a 6-button keypad.
pGDN features a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
These terminals can display graphic symbols of various sizes and the main international alphabets, and feature the flexibility and ease of customisation that is the basis for the design of the CAREL pCO/c.pCO sistema family products, offering more demanding customers several customisation possibilities at affordable costs, even for limited quantities. Connection to the pCO controller is available over the RS485 network using the pLAN protocol.

Преимущества

	New hardware PGN use a full new generation of microprocessors and LCD drivers.
	Higher alarm visibility Thanks to the dual-color alarm keys, the alarming indication is much easier to see.
	Preserve backward compatibility The code replacement is fully guaranteed by the HW and SW backward compatibility with pGD0 and pGD1/E.

Документация

Технический

2D/3D модели

Код	Описание	Язык	Дата *	Выпуск
Код 2d-3d pGD1 panel	Описание 2D-3D drawings	Язык ALL	Дата 14/01/2014	Выпуск R0

Руководства по эксплуатации

Код	Описание	Язык	Дата *	Выпуск
Код +05C001425	Описание pGN0 / pGN1 / pGNE pCO 图形显示手操器 / pCO Graphic Display	Язык CHI ENG	Дата 13/04/2023	Выпуск 1.3
Код +050001425	Описание pGN0 / pGN1 / pGNE pCO display grafico / pCO Graphic Display	Язык ENG ITA	Дата 13/04/2023	Выпуск 1.3

Коммерческий

Код	Описание	Язык	Дата *	Выпуск
Код +800004036	Описание Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach	Язык POL	Дата 05/04/2023	Выпуск 1.2
Код +800004031	Описание Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving	Язык ENG	Дата 05/04/2023	Выпуск 1.2
Код +800004030	Описание Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico	Язык ITA	Дата 05/04/2023	Выпуск 1.2
