EVD module
Общие характеристики
EVD module is an add-on expansion module for installation alongside UltraCella or SmartCella. It is easy to assemble and connect, and allows energy savings through management of a CAREL EEV.
The module can be mounted directly on a DIN rail or pre-assembled for wall mounting, thanks to special plastic inserts and three wide bypass holes for convenient and safe wiring, while guaranteeing IP65 on the complete enclosure.

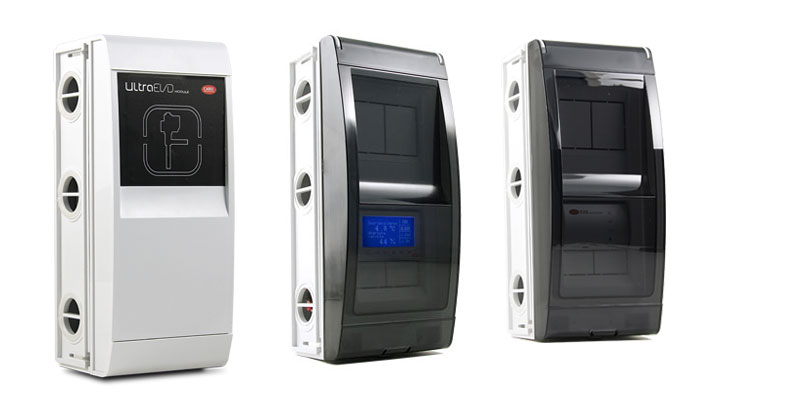

Available in versions with or without display and with or without Ultracap for retrofit applications.
The display simplifies programming, meaning the controller can be started after selecting just a few parameters. Ultracap technology guarantees safe valve closure in the event of power failures, avoiding the need to install a solenoid valve.
UltraCella communicates with EVD Evolution via serial communication, for managing and configuring EVD directly from UltraCella.Main functions:
- superheat control with high pressure, low pressure and low superheat protection
- guided commissioning procedure (selecting just 4 parameters, stand-alone module)
- connection diagram shown on the display
- removable graphic LCD, multi-language interface with online help for the parameters and SI or imperial units of measure
- user management with password to access different configuration levels
- copy parameter values to different EVD devices from the display
- LEDs for monitoring the main parameters
- use of low-power ratiometric pressure transducers with 4 to 20 mA output (these can be shared between several drivers)
- second digital input for defrost management
- possibility to use backup probes
- Ultracap technology that assures safe valve closure in the event of power failures
Combined with the CAREL ExV series electronic expansion valves, the EVD Evolution drivers create an integrated control system that optimises evaporator operation and ensures high energy savings.
Документация
Технический
-
2D/3D модели
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код 2d-3d Ultra EVD Module Описание 2D-3D drawings Язык ALL Дата 10/11/2015 Выпуск R0 Код 2d-3d Ultra EVD Blind Module Описание 2D-3D drawings Язык ALL Дата 10/11/2015 Выпуск R0 -
Инструкции по применению
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0300005CS Описание EVD evolution Ovladač elektronického expanzního ventilu Язык CZE Дата 24/01/2024 Выпуск 4.2 Код +0300005DE Описание EVD evolution Treiber für elektronisches Expansionsventil Язык GER Дата 24/01/2024 Выпуск 4.2 Код +0300005EN Описание EVD evolution electronic expansion valve driver Язык ENG Дата 24/01/2024 Выпуск 4.2 Код +0300005ES Описание EVD evolution driver para válvula de expansión electrónica Язык SPA Дата 24/01/2024 Выпуск 4.2 Код +0300005FR Описание EVD evolution pilote pour vanne d'expansion électronique Язык FRE Дата 24/01/2024 Выпуск 4.2 Код +0300005IT Описание EVD evolution driver per valvola di espansione elettronica Язык ITA Дата 24/01/2024 Выпуск 4.2 Код +0300005PT Описание EVD evolution driver para válvula de expansão eletrônica Язык POR Дата 24/01/2024 Выпуск 4.2 Код +0300005RU Описание EVD evolution Привод электронного расширительного вентиля Язык RUS Дата 24/01/2024 Выпуск 4.2 -
Руководства по эксплуатации
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0500087FD Описание WM00E***00: Ultra EVD Module Modulo di espansione driver valvola elettronica per UltraCella Erweiterungsmodul mit Treiber für elektronisches Ventil für UltraCella Язык FRE GER Дата 22/07/2019 Выпуск 2.5 Код +0500087IE Описание WM00E**I00: Ultra EVD Module: Modulo di espansione driver valvola elettronica per UltraCella/ Driver-Valve expansion module for UltraCella Язык ENG ITA Дата 22/07/2019 Выпуск 2.5
Коммерческий
-
Other related documentation
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000192IT Описание Cella Range - Soluzioni per celle frigorifere Язык ITA Дата 20/12/2023 Выпуск 2.5 Код +3000192EN Описание Cella Range - Solutions for cold rooms Язык ENG Дата 20/12/2023 Выпуск 2.5 Код +3000192DE Описание Cella Range - Lösungen für Kühlräume Язык GER Дата 20/12/2023 Выпуск 2.5 Код +3000192ES Описание Cella Range Soluciones para cámaras frigoríficas Язык SPA Дата 02/10/2019 Выпуск 2.0 -
История успеха
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +4000057EN Описание Energy savings in cold rooms Язык ENG Дата 20/11/2023 Выпуск 2.0 Код +4000057IT Описание Risparmio energetico nelle celle frigo Язык ITA Дата 20/11/2023 Выпуск 2.0 Код +4000057DE Описание Energie sparen bei Kühlräumen Язык GER Дата 20/11/2023 Выпуск 2.0 Код +4000057FR Описание Économie d’énergie dans les cellules frigorifiques Язык FRE Дата 20/11/2023 Выпуск 2.0 Код +4000057ES Описание Ahorro energético en las cámaras frigoríficas Язык SPA Дата 20/11/2023 Выпуск 2.0 Код +4000057NL Описание Energiebesparing in koelcellen Язык DUT Дата 20/11/2023 Выпуск 2.0 Код +4000010ES Описание Extra economia com CAREL retail sistema Язык SPA Дата 11/02/2011 Выпуск 1.0 Код +4000010DE Описание Extra-Energie sparen mit CAREL retail sistema Язык GER Дата 11/02/2011 Выпуск 1.0 Код +4000010EN Описание Extra savings with CAREL retail sistema Язык ENG Дата 11/02/2011 Выпуск 1.0 Код +4000010FR Описание Plus d’économies avec les Solutions CAREL Retail Язык FRE Дата 11/02/2011 Выпуск 1.0 Код +4000010IT Описание Extra risparmio con CAREL retail sistema Язык ITA Дата 11/02/2011 Выпуск 1.0 Код +4000010PT Описание Ahorro extra con CAREL retail sistema Язык POR Дата 11/02/2011 Выпуск 1.0 Код +4000010JA Описание よりよい省エネを、 CAREL retail sistemaで Язык JAP Дата 11/02/2011 Выпуск 1.0 -
Пример применения
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +4000009DE Описание Intuitionsbasierter wissenschaftlicher Ansatz Язык GER Дата 11/02/2011 Выпуск 1.0 Код +4000009EN Описание A scientific approach applied to intuition Язык ENG Дата 11/02/2011 Выпуск 1.0 Код +4000009ES Описание Aproximación científica aplicada a la intuición Язык SPA Дата 11/02/2011 Выпуск 1.0 Код +4000009FR Описание Approche scientifique appliquée à une hypotèse Язык FRE Дата 11/02/2011 Выпуск 1.0 Код +4000009IT Описание Approccio scientifico applicato all’intuizione Язык ITA Дата 11/02/2011 Выпуск 1.0 Код +4000009JA Описание 科学的アプローチの直観化 Язык JAP Дата 11/02/2011 Выпуск 1.0 Код +4000009PT Описание Aproximação científica aplicada à intuição Язык POR Дата 11/02/2011 Выпуск 1.0 Код +4000009ZH Описание 直观化的 科学方法 Язык CHI Дата 11/02/2011 Выпуск 1.0
Images
-
High resolution images
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код PH14LWM303-ultra-EVD-module-range Описание CAREL-Refrigeration Parametric Controls-Cella range-EVD module Язык ALL Дата 24/09/2021 Выпуск R.0 Код PH15LWM301-EVD-module-no-display Описание CAREL-Refrigeration Parametric Controls-Cella range-EVD module Язык ALL Дата 24/09/2021 Выпуск R.0
