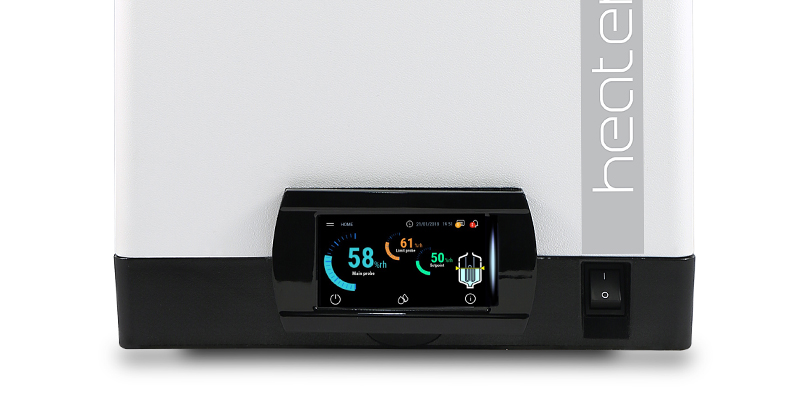

heaterSteam process



Общие характеристики
heaterSteam process completes the range of heater humidifiers, offering a modular and versatile solution.
heaterSteam process is the ideal solution for applications in which reliability and operating flexibility are needed when feedwater characteristics not always under control or may vary over time, such as marine applications. In these cases, or even when the feedwater needs to be softened, immersed electrode humidification is usually problematic, if not impossible.
In general, with heater technology, the quality of steam production can be affected by the generation of foam due to the use of softened water. Water that is very rich in minerals, on the other hand, increases maintenance requirements. heaterSteam process, however, fears no type of water: the heaters used in heaterSteam process are made from Incoloy® 825, a highly resistant and versatile superalloy developed to work in variable feedwater conditions. Protection against overheating guarantees safety and reliability in all situations, while the thermal shock function periodically detaches any scale from the heaters, diminishing the frequency and complexity of maintenance operations.
The versatility of heaterSteam process is also reflected in its modularity. The Master/Slave “mirror” function in fact allows up to 19 units to be controlled in parallel using a proportional signal, thus extending the capacity of the humidification system to 2-1600 kg/h without any complications whatsoever.
-
Преимущества
heaterSteam process is the ideal solution for applications in which reliability and operating flexibility are needed when feedwater characteristics not always under control. - Flexibility: works regardless of feedwater characteristics.
- Modularity: heaterSteam process can control up to 19 units in parallel via a proportional signal.
- Simplified maintenance: the thermal shock cycles remove any scale build-up on the heaters.
Документация
Technical
-
Инструкции по применению
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0300087FI Описание heaterSteam 4 - UR Vastuskostutin Язык FIN Дата 22/01/2021 Выпуск 1.4 Код +0300087PT Описание heaterSteam 4 - UR Umidificador com resistências elétricas Язык POR Дата 22/01/2021 Выпуск 1.4 Код +0300087EN Описание heaterSteam 4 - UR Electric resistance humidifier Язык ENG Дата 22/01/2021 Выпуск 1.4 Код +0300087IT Описание heaterSteam 4 - UR Umidificatore a resistenze elettriche Язык ITA Дата 22/01/2021 Выпуск 1.4 Код +0300087FR Описание heaterSteam 4 - UR Humidifi cateur à résistances électriques Язык FRE Дата 22/01/2021 Выпуск 1.4 Код +0300087DE Описание heaterSteam 4 - UR Befeuchter mit elektrischen Heizelementen Язык GER Дата 22/01/2021 Выпуск 1.4 Код +0300087RU Описание heaterSteam 4 - UR Электрические изотермические увлажнители Язык RUS Дата 22/01/2021 Выпуск 1.4 Код +0300087SV Описание heaterSteam 4 - UR Befuktare med värmeelement Язык SWE Дата 22/01/2021 Выпуск 1.4 Код +0300087ES Описание heaterSteam 4 - UR Humidifi cador por resistencias eléctricas Язык SPA Дата 22/01/2021 Выпуск 1.4 Код +0300087NL Описание heaterSteam 4 - UR Elektrische weerstand-luchtbevochtiger Язык SWE Дата 14/02/2020 Выпуск 1.3 Код +0300087ZH Описание heaterSteam 4 - UR Язык CHI Дата 31/05/2018 Выпуск 1.0 -
BIM files
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код BIM files heaterSteam Описание Язык ALL Дата 11/03/2020 Выпуск R0
Commercial
-
Брошюра
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000018EN Описание Humidity matters! CAREL humidifiers, a solution for every need Язык ENG Дата 15/09/2020 Выпуск 4.1 Код +3000018IT Описание L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta Язык ITA Дата 15/09/2020 Выпуск 4.1 Код +3000206EN Описание Marine air humidification Язык ENG Дата 23/04/2020 Выпуск 1.0 Код +3000206IT Описание Umidificazione dell’aria in ambiente marino Язык ITA Дата 23/04/2020 Выпуск 1.0 Код +3000193EN Описание Direct humidification: Advanced solutions for industrial and commercial environments Язык ENG Дата 15/11/2019 Выпуск 1.1 Код +3000193IT Описание Umidificazione diretta: Soluzioni all’avanguardia per ambienti industriali e commerciali Язык ITA Дата 15/11/2019 Выпуск 1.1 Код +3000193NL Описание Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen Язык DUT Дата 15/11/2019 Выпуск 1.1 Код +3000193ES Описание Humectación directa Soluciones avanzadas para ambientes industriales y comerciales Язык SPA Дата 15/11/2019 Выпуск 1.1 Код +3000193DE Описание Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel Язык GER Дата 15/11/2019 Выпуск 1.1 Код +3000109KO Описание heaterSteam - 최고의 정밀도와 신뢰성 Язык KOR Дата 27/02/2019 Выпуск 2.1 Код +3000109NL Описание heaterSteam Ongeëvenaarde nauwkeurigheid en betrouwbaarheid Язык DUT Дата 27/02/2019 Выпуск 2.1 Код +3000109FR Описание heaterSteam - l’excellence en fiabilité et précision Язык FRE Дата 27/02/2019 Выпуск 2.1 Код +3000109RU Описание heaterSteam беспрецедентно высокая точность и надежность Язык RUS Дата 27/02/2019 Выпуск 2.1 Код +3000109IT Описание heaterSteam precisione e affidabilità senza precedenti Язык ITA Дата 27/02/2019 Выпуск 2.1 Код +3000109ES Описание heaterSteam precisión y fiabilidad sin precedentes Язык SPA Дата 27/02/2019 Выпуск 2.1 Код +3000109EN Описание heaterSteam unprecedented precision and reliability Язык ENG Дата 27/02/2019 Выпуск 2.1 Код +3000109DE Описание heaterSteam Unvergleichliche Präzision und Zuverlässigkeit Язык GER Дата 27/02/2019 Выпуск 2.1 Код +3000109ZH Описание heaterSteam 电热型加湿器 前所未有的精密控制与高可靠性 Язык CHI Дата 20/06/2018 Выпуск 2.0
Local Information
-
Local Information
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000018EN Описание Humidity matters! CAREL humidifiers, a solution for every need Язык ENG Дата 15/09/2020 Выпуск 4.1
