Heez
Общие характеристики

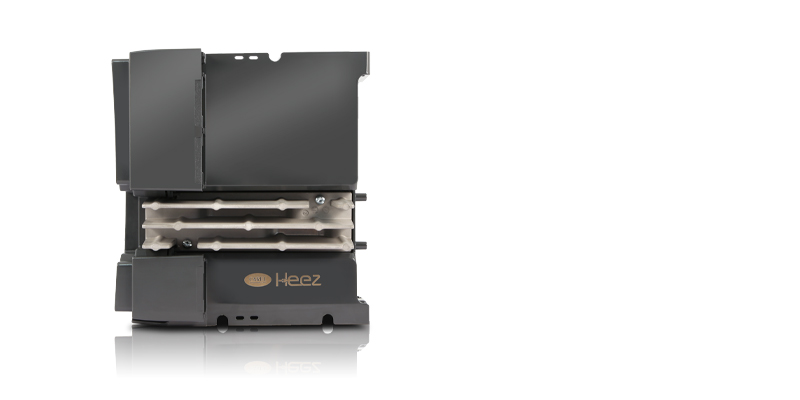

Heez is CAREL’s new solution for the control and management of beverage coolers, guaranteeing high energy efficiency and incredible performance while reducing environmental impact.
For the very first time, the refrigerated merchandiser segment can take advantage from the integration of innovative CAREL technologies such as variable capacity rotary compressors (DC inverter), electronic expansion valve and variable speed fans. Compared to traditional systems, the beverage coolers equipped with CAREL solutions efficiently vary their cooling capacity so as to adapt to instant requirements, guaranteeing higher reliability and stability, lower noise and more compact dimensions.
Heez also features extended connectivity options, enabling data acquisition and analysis for enhanced management and operation of beverage coolers.
IoT and data analytics make it possible to both adopt digital marketing strategies and improve service, for example by implementing preventive management actions.
-
Преимущества
Efficiency
- self learning logic for night and day conditions based on user habits;
- optimal regulation with steady state and partial load management by modulating devices;
- ultimate algorithms for dynamic setpoint, defrost detect and smart implementation.
Performance
- industry benchmark reduced Pull Down and Half Reload timings;
- stability control to ensure constantly optimal product temperature;
- advanced defrost detection to work always at optimal conditions.
Reliability
- advanced DC inverter compressor management with EEV synchronisation and protections;
- no need of voltage stabiliser with DC inverter and extended input voltage range;
- smooth operation with reduced vibrations for lower mechanical stress.
New connectivity and usability
- easily customisable user interface with a completely upgraded design;
- integrated wireless connectivity, both NFC and Bluetooth, for interaction with mobile devices and access to all the information and reference documents, always updated on available on the cloud.
Документация
Технический
-
2D/3D модели
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код 2d - 3d Heez IP44.zip Описание 2D-3D drawings IP44 Язык ALL Дата 09/05/2022 Выпуск R0 Код 2d - 3d Heez IP00.zip Описание 2D-3D drawings IP00 Язык ALL Дата 09/05/2022 Выпуск R0 Код 2d - 3d Heez display.zip Описание 2D-3D drawings Язык ALL Дата 10/01/2018 Выпуск R1 -
Руководства по эксплуатации
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +050002745 Описание Heez Controllo elettronico per refrigeratore di bevande Electronic controller for bottle coolers Язык ENG ITA Дата 16/11/2021 Выпуск 1.2
Коммерческий
-
Брошюра
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000141EN Описание HEEZ Efficiency and performance, naturally connected Язык ENG Дата 13/05/2021 Выпуск 2.1 Код +3000141IT Описание HEEZ Efficienza e prestazioni naturalmente connesse Язык ITA Дата 13/05/2021 Выпуск 2.1 Код +3000141ES Описание Heez Eficiencia y prestaciones conectadas naturalmente Язык SPA Дата 13/05/2021 Выпуск 2.1 Код +3000195PT Описание On Show - Apas 2019 Язык POR Дата 01/04/2019 Выпуск 1.0 -
Пример применения
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +4000067EN Описание Heez for beverage coolers Efficiency and performance tested by Re/genT Язык ENG Дата 18/05/2021 Выпуск 1.2 Код +4000067IT Описание Heez per beverage coolers Efficienza e performance testate presso Re/genT Язык ITA Дата 18/05/2021 Выпуск 1.2
Images
-
High resolution images
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код PH20LHZ302-Heez-IP20-44 Описание Heez-CAREL-Refrigeration Parametric Controls-Heez Series Язык ALL Дата 03/09/2021 Выпуск R.0 Код PH20LHZ301-Heez-IP00 Описание Heez-CAREL-Refrigeration Parametric Controls-Heez Series Язык ALL Дата 03/09/2021 Выпуск R.0 Код PH17LHZ308-Heez-controller-logo Описание Heez-CAREL-Refrigeration Parametric Controls-Heez Series Язык ALL Дата 03/09/2021 Выпуск R.0
