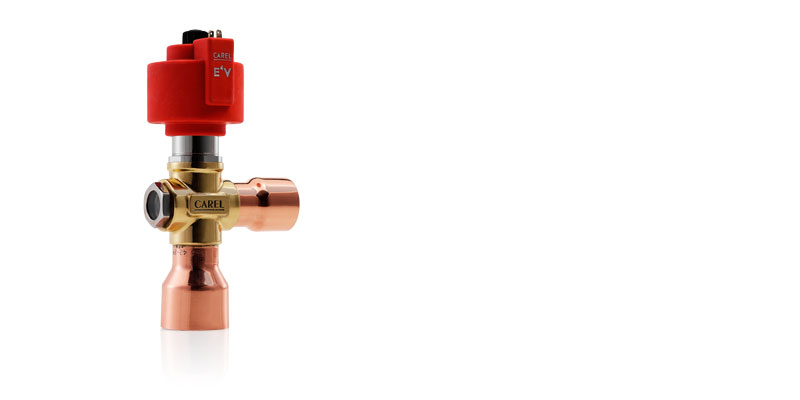

E4V - B (demountable)

E4V-B*
E4V - B (demountable)
  • Общие характеристики

    The CAREL E4V electronic valve is designed to act as the expansion device on medium/high capacity chillers and air-conditioning systems, up to a cooling capacity of 280 kW.
    Reliability, wide control capacity, fluid flow in both directions: these three features are all ensured by the E4V expansion valve, satisfying the need for a high product quality combined with operating and installation versatility.
    The innovative characteristic of the E4V is the incorporated sight glass, used to monitor movement of the movable element and refrigerant flow inside the circuit. In addition, the valve is made from modular elements assembled during installation, to simplify maintenance and inspection of the components.

    The E4V-B valve differs from the previous version E4V-A as regards the material used to make the movable element, which will be composite rather than steel; this will be available in two sizes, 85 and 95.



Документация

Technical

  • Руководства по эксплуатации
    Код Описание Язык Дата * Выпуск
    Код +050001220

    Описание E4V - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Язык ENG  FRE  GER  ITA  SPA

    Дата 08/06/2021

    Выпуск 4.5


Images

  • High resolution images
    Код Описание Язык Дата * Выпуск
    Код PH14LE4302-E4V-b

    Описание CAREL E4V - B (demountable) - Electronic expansion valve - ExV - EEV Technology

    Язык ALL

    Дата 11/03/2022

    Выпуск R.0
