c.pCO mini
Общие характеристики

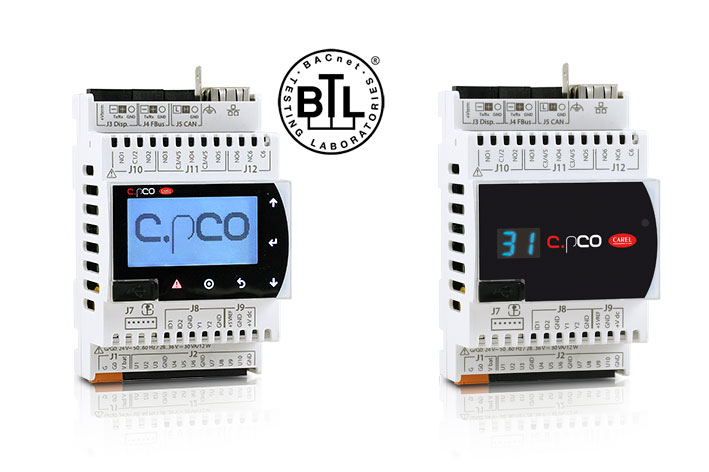

The c.pCO mini universal programmable controllers are designed for applications with limited space in the ventilation, chiller, rooftop, rack, close control and blast chiller markets.
They offer specific features to improve efficiency in HVAC/R systems, specifically:
- flexibility of use due to their compact size compared to the c.pCO (4 DIN modules) and the different product models (basic, enhanced, high end), available in panel or DIN rail mounting versions. All the models feature a USB port and universal I/O channels, with additional channels available through I/O expansions;
- built-in driver for controlling unipolar electronic expansion valves;
- connectivity through up to two FieldBus and BMS serial lines with configurable protocol (CAREL or Modbus®) and one USB port;
- networking via the built-in Ethernet interface (IPV6 ready), with a wide range of standard protocols available for local connectivity (web server via HTTP, Modbus TCP/UDP, BACnet IP/MSTP, FTP, FTPS, DHCP, DNS, mDNS, NTP).
c.pCO mini models are for programming using the c.suite or STone development environments.-
Преимущества
Compactness
Different versions available in terms of the number of I/Os, connectivity and unipolar electronic expansion valve driver option, all in just four DIN modules. Both DIN rail and panel mounting optimise space occupied in the application.
Programmability
Depending on the model, c.pCO mini can be programmed using the c.suite development environment or the new STone development environment.
Security
Cybersecurity is a priority, constantly guaranteed on the c.pCO mini controllers through periodic security assessments carried out by independent third parties. The STone-based models are designed in line with the IEC 62443 standard, integrating advanced features such as secure boot and digital signature with asymmetric encryption system.
I/O Flexibility
In addition to 6 relays, all c.pCO mini models have 10 universal I/O channels, allowing custom arrangements of inputs/outputs. Thanks to the CAREL proprietary ASIC chip, the universal channels can be configured independently as analogue inputs, digital inputs or analogue outputs.
Advanced connectivity
c.pCO mini, on the models where featured, has a built-in Ethernet port for connection to the tERA cloud platform without requiring additional gateways. The c.pCO mini models have up to two built-in serial interfaces (BMS and/or FieldBus) and a USB-C host port. Choice of a wide range of communication protocols (e.g. Modbus, CAREL, BACNet, Konnex, TCP/IP, HTTP, FTP, DHCP, DNS, NTP, SNMP). STone-based models natively feature connection to CAREL apps.
Документация
Технический
-
2D/3D модели
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код 2d-3d cpCOmini DIN Описание 2D-3D drawings Язык ALL Дата 10/11/2015 Выпуск R0 Код 2d-3d cpCOmini - Panel version Описание 2D-3D drawings Язык Дата 10/11/2015 Выпуск R0 -
Инструкции по применению
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0300057IT Описание c.pCO Controllo programmabile Язык ITA Дата 28/03/2025 Выпуск 1.7 Код +0300057EN Описание c.pCO Programmable Controller Язык ENG Дата 28/03/2025 Выпуск 1.7 Код +0300057PL Описание c.pCO sistema Kontroler Programowalny Язык POL Дата 28/03/2025 Выпуск 1.7 Код +0300057RU Описание Семейство c.pCO Программируемый контроллер Язык RUS Дата 26/10/2020 Выпуск 1.4 -
Руководства по эксплуатации
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +0500058ML Описание P+D* and P+P*: c.pCOMini – Control Programable Integrado / Controle Programável Integrado Язык POR SPA Дата 26/05/2025 Выпуск 1.9 Код +0500058IE Описание P+D* and P+P*: c.pCOMini – Controllo Programmabile Integrato / Integrated Programmable Controller Язык ENG ITA Дата 26/05/2025 Выпуск 1.9 Код +0500058ZH Описание P+D* and P+P*: c.pCO mini – 集成式可编程控制器 / Integrated Programmable Controller Язык CHI ENG Дата 10/04/2024 Выпуск 1.8
Коммерческий
-
Other related documentation
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +800004030 Описание Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Язык ITA Дата 05/02/2025 Выпуск 1.3 Код +800004031 Описание Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving Язык ENG Дата 05/02/2025 Выпуск 1.3 Код +800004036 Описание Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach Язык POL Дата 05/02/2025 Выпуск 1.3 Код +3000262EN Описание Highly-efficient energy recovery for controlled mechanical ventilation units - Combined thermal wheel + reverse-cycle heat pump solution Язык ENG Дата 01/08/2024 Выпуск 1.0 Код +3000262IT Описание Recupero dell’energia ad alta efficienza per unità di ventilazione meccanica - Soluzione combinata di scambiatore di calore rotativo e pompa di calore reversibile Язык ITA Дата 01/08/2024 Выпуск 1.0 -
Брошюра
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +3000098IT Описание c.pcosistema efficienza grazie al collegamento in rete Язык ITA Дата 01/04/2016 Выпуск 2.0 Код +3000098RU Описание C.PCO SISTEMA Язык RUS Дата 01/04/2016 Выпуск 2.0 Код +3000082EN Описание Exhibition @ a glance Язык ENG Дата 09/10/2014 Выпуск 2.0
