boss one

“PCOG***WE0 / PCOD***WE0”
boss one
  • Общие характеристики

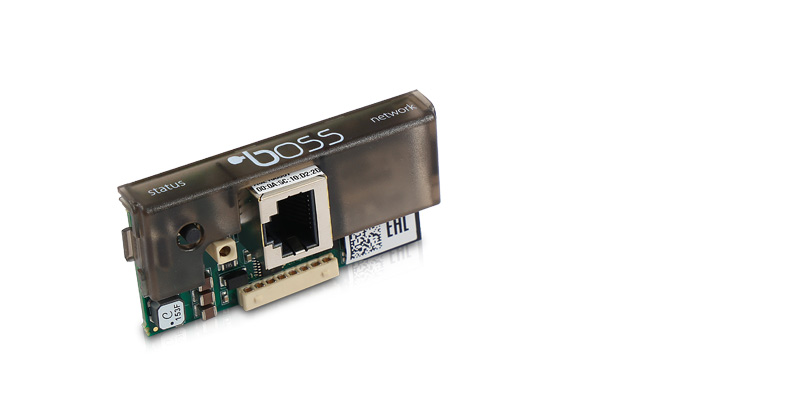

    boss one has the same size and shape as pCOWeb SE, in order to ensure compatibility with all CAREL programmable controllers that featured the BMS card option. The software, on the other hand, differs substantially from pCOWeb, with the introduction of numerous features that cover the same applications yet with much high levels of IT security, usability and flexibility. All exploiting the experience and reliability inherited from the boss range, which the boss one internal logic and user interface are based on.

    boss one is available in two SW versions, called “gateway” and “supervisor”: both can manage a single unit, but differ in terms of the type of application they refer to. The “gateway” version has been created to mainly allow integration of the unit into a local BMS that communicates via Modbus, BACnet and SNMP protocols. The “supervisor” version, on the other hand, is intended for applications that, in addition to the field protocols, require supervisory features, such as managing log files, sending emails or instant messages for alarms, and communicating with the outside world (Internet) to CAREL cloud systems or third-party systems via XML or MQTT protocol.


  • Преимущества

    Security

    • Access security through user and profile management, centralised with LDAP systems where necessary, password and password expiry security control and blocking of users in the event of multiple incorrect password entry attempts.
    • Secure data transmission by management of encrypted protocols for browsing the web, sending emails and exchanging data with third-party systems.

    Flexibility

    • Flexibility in configuring the protocols through a web interface that can be used to set the index and property for each individual variable
    • Flexibility in user management, through profiling to enable or prevent individual users or groups from accessing the various sections of the software application.

    Smart user interface

    • Easy troubleshooting in the field through an intuitive user interface that can be accessed from mobile devices.
    • Easily customised user interface using the integrated features on the web pages to changed images/logos and through the possibility to create maps with the c.web tool.







Документация

Technical

  • Инструкции по применению
    Код Описание Язык Дата * Выпуск
    Код +0300088DE

    Описание boss: Lokale Überwachungslösung für mittelgroße und große Anlagen

    Язык GER

    Дата 21/01/2019

    Выпуск 1.3

    Код +0300088EN

    Описание boss: Local supervisor for medium and large systems

    Язык ENG

    Дата 21/01/2019

    Выпуск 1.3

    Код +0300088ES

    Описание boss: Supervisor local para sistemas de tamaño medio y grande

    Язык SPA

    Дата 21/01/2019

    Выпуск 1.3

    Код +0300088FR

    Описание boss: Superviseur local pour les systèmes de taille moyenne et grande

    Язык FRE

    Дата 21/01/2019

    Выпуск 1.3

    Код +0300088IT

    Описание boss: Supervisore locale per sistemi di medie e grandi dimensioni

    Язык ITA

    Дата 21/01/2019

    Выпуск 1.3

  • Руководства по эксплуатации
    Код Описание Язык Дата * Выпуск
    Код +050003246

    Описание boss one Istruzioni di montaggio / Assembly procedure

    Язык ENG  ITA

    Дата 19/11/2019

    Выпуск 1.0


Commercial

  • Брошюра
    Код Описание Язык Дата * Выпуск
    Код +3000228EN

    Описание boss one - Connectivity, security and flexibility for HVAC/R units

    Язык ENG

    Дата 20/10/2021

    Выпуск 1.0

    Код +3000228IT

    Описание boss one - Connettività, sicurezza e flessibilità per unità HVAC/R

    Язык ITA

    Дата 20/10/2021

    Выпуск 1.0


Images
