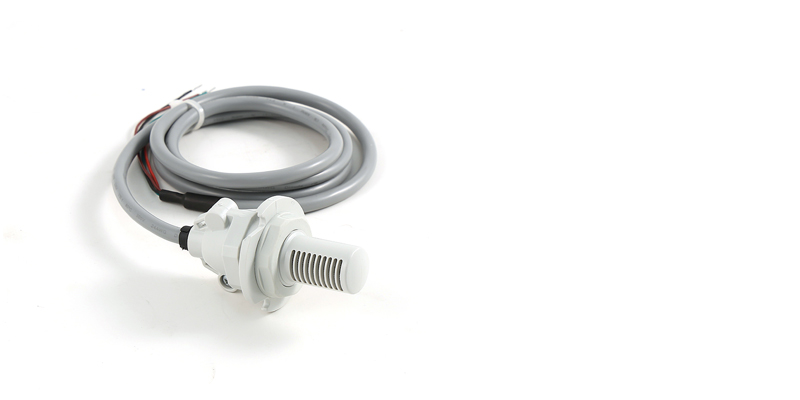

T and H sensors - compact
DPR*
Общие характеристики
The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:
- Air handling units;
- Air-to-air heat recovery units;
- CRAC units (Computer room air conditioning units), both perimeter and In-row;
It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
Available with 1 m and 3 m long cables.
Документация
Технический
-
2D/3D модели
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код 2d-3d Compact temperature and humidity sensor Описание 2D-3D drawings Язык ALL Дата 08/03/2021 Выпуск R0 -
Руководства по эксплуатации
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +050000585 Описание Sensore compatto temperatura e umidità / Compact temperature and humidity sensor Язык ENG ITA Дата 21/07/2016 Выпуск 1.2
Коммерческий
-
Other related documentation
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код +800004030 Описание Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Язык ITA Дата 05/04/2023 Выпуск 1.2 Код +800004036 Описание Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach Язык POL Дата 05/04/2023 Выпуск 1.2
Images
-
High resolution images
* Entries are ordered by date
Код Описание Язык Дата * Выпуск Код PH16LDP301-remote-temperature-humidity-sensor Описание CAREL T and H sensor compact - Temperature, humidity and Indoor Air Quality sensor - Sensor and protection device Язык ALL Дата 11/03/2022 Выпуск R.0
